X-Axis Finishing System Kits
The X-Axis Finishing System consists of custom, proprietary, patent-pending 3D printed components specifically designed to support wood cabinet doors and drawer fronts in the horizontal position during finishing. It is unique as it accomplishes this with zero contact with the wet panels throughout the entire process. The X-Axis components are composed of SLS 3D printed high strength Nylon (PA12) for endurance and durability.
Note: Door tool has a hinge hole compatibility range from 34.90mm to 35.10mm (+/- 0.20mm)
The two options currently available are:
The X-Axis 10/5 Introductory Kit and the X-Axis 20/10 Standard Kit, and these kits are outlined below.
The 10/5 Introductory Kit consists of 90 pieces that integrate to accommodate finishing of 15 total panels. 10 Cabinet doors and 5 Drawer fronts. The components easily attach to the panels and are easily removed to be stored away for use again repeatedly. This kit comes with a build plan for a wood spray rack and drying rack. It is a build plan to convey operational concept that can be modified by the end user to specific shop needs.
Introductory Kit Includes:

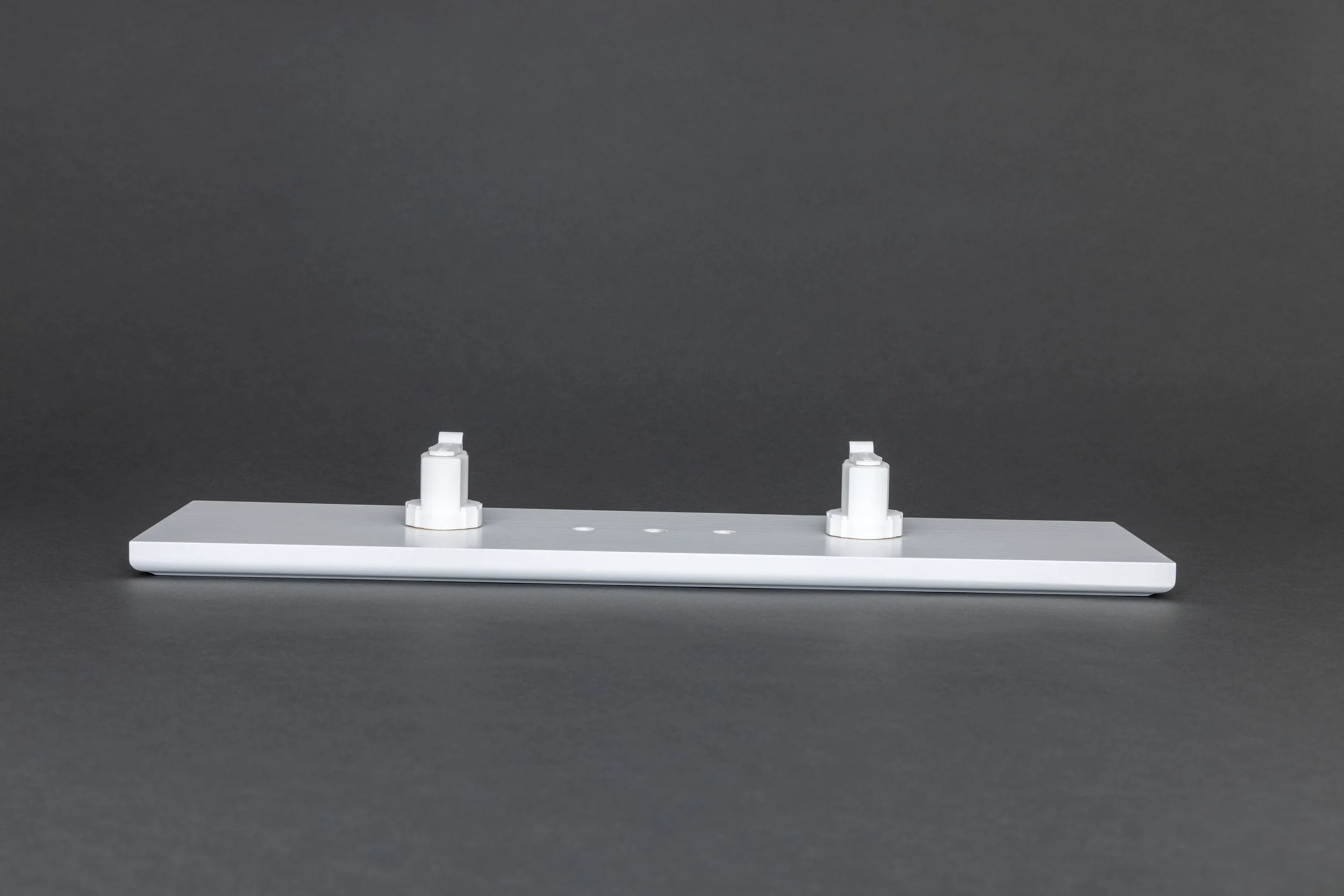

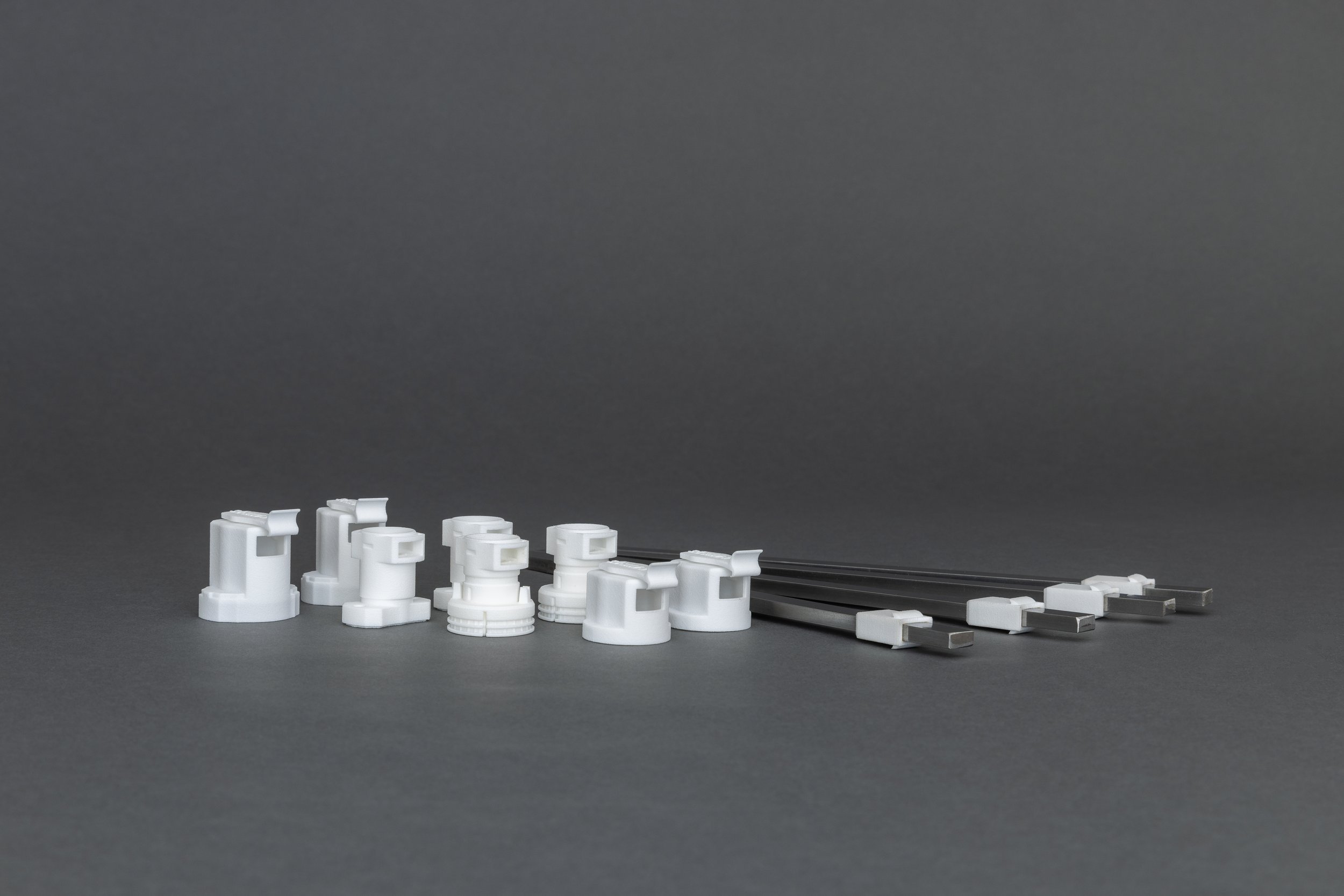

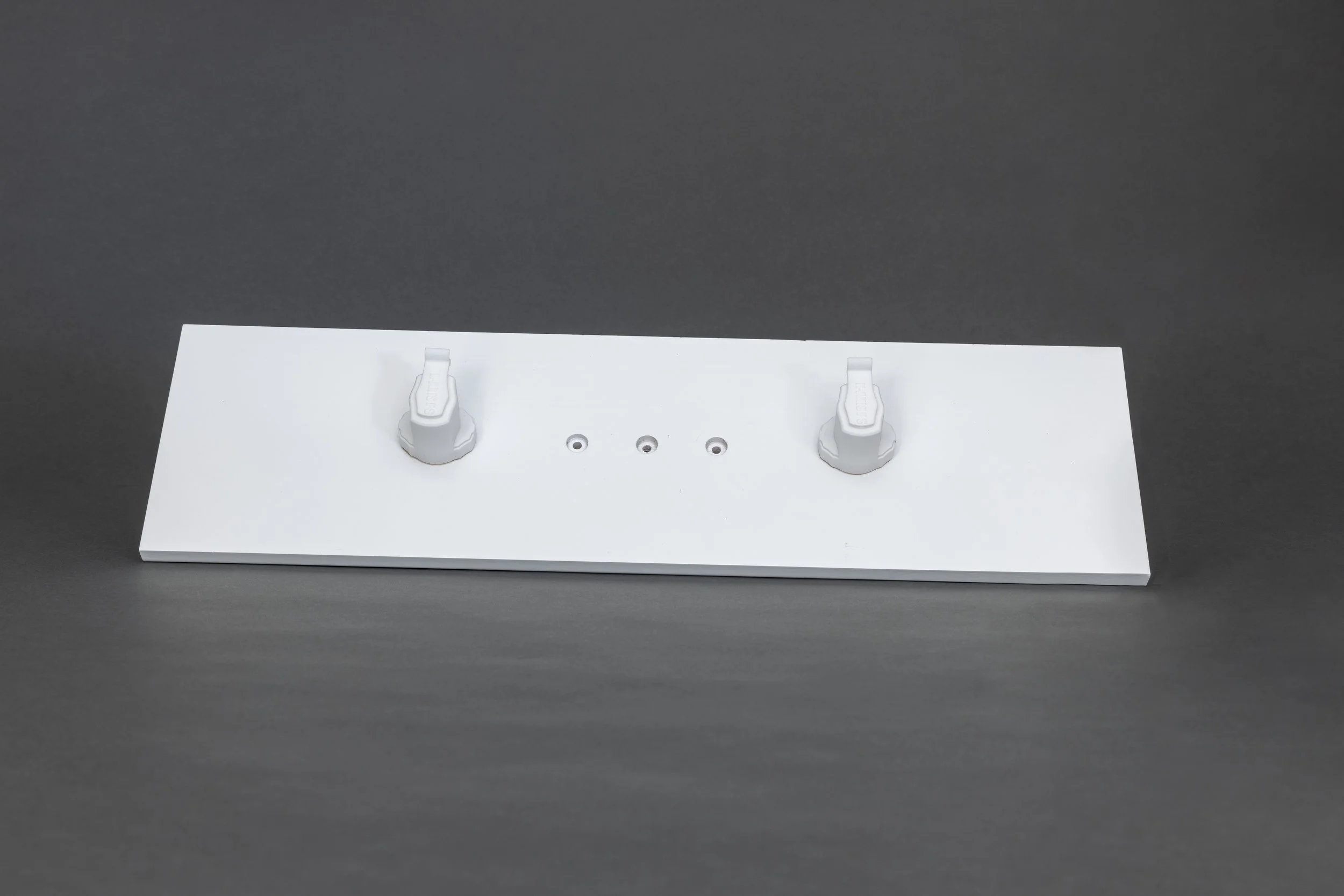

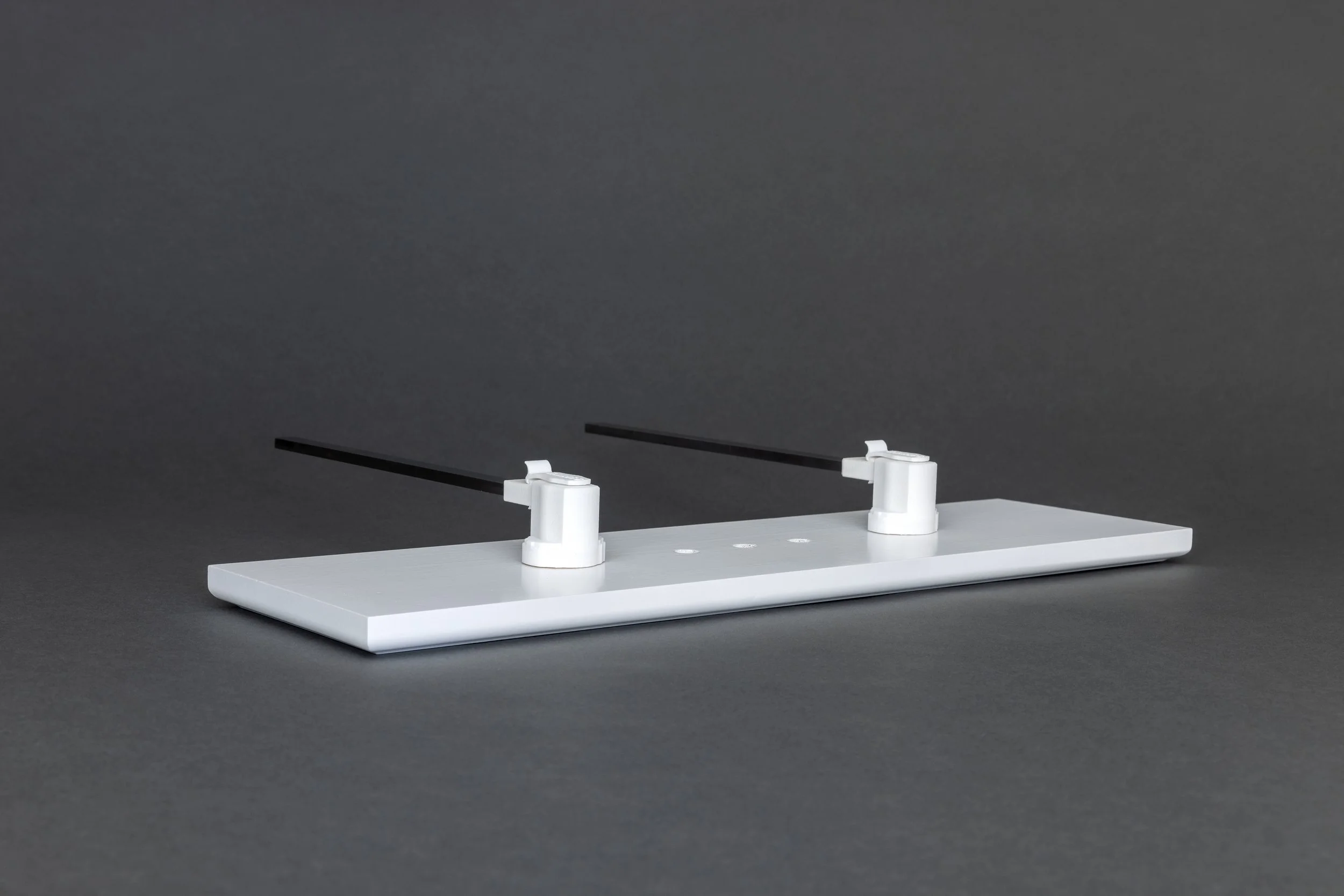

-10 Drawer Front Hubs
-10 Drawer Hub Spray Caps with Locking Latch
-10 Handles with Locks
(Enough to finish 5 Drawer Fronts)

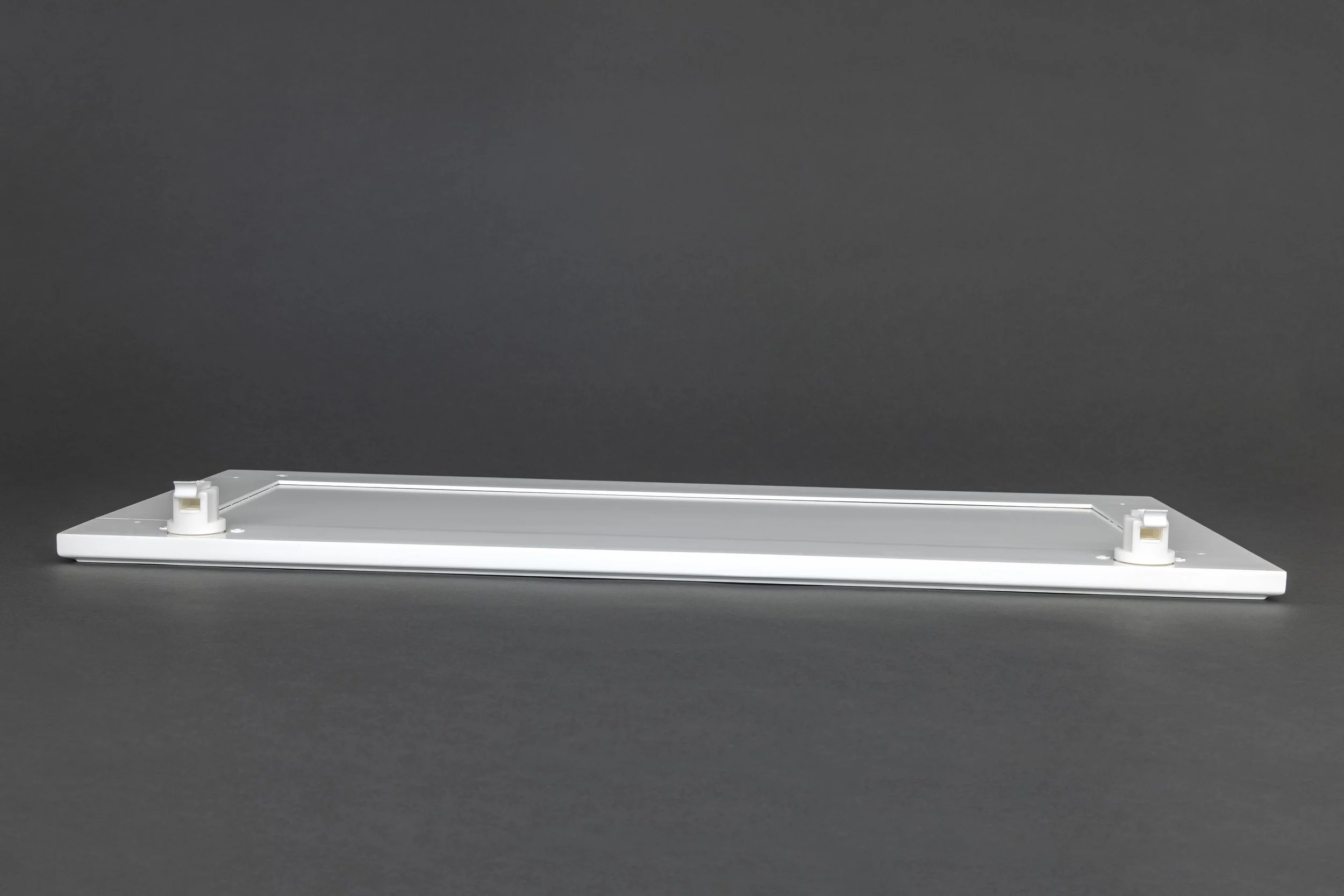

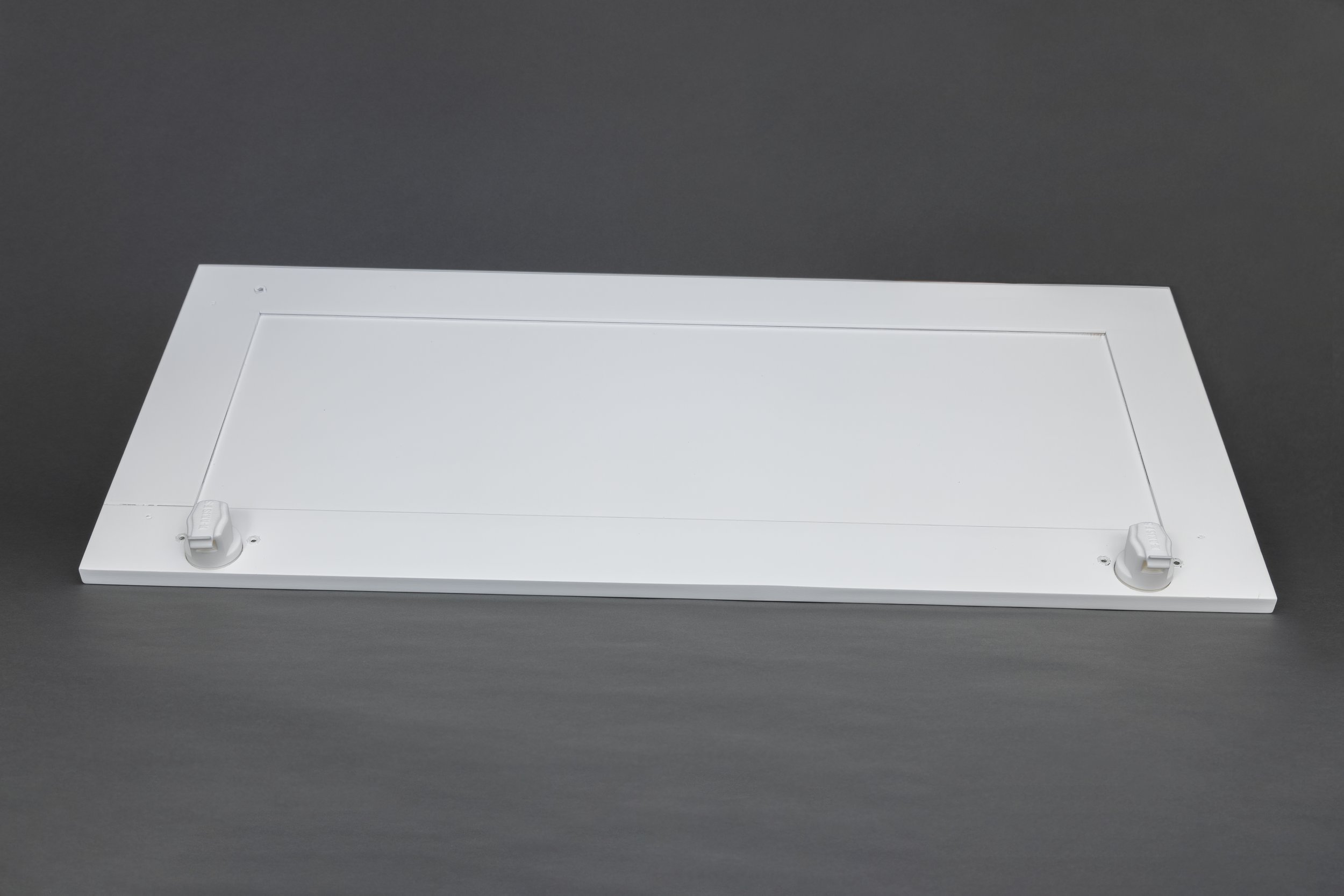

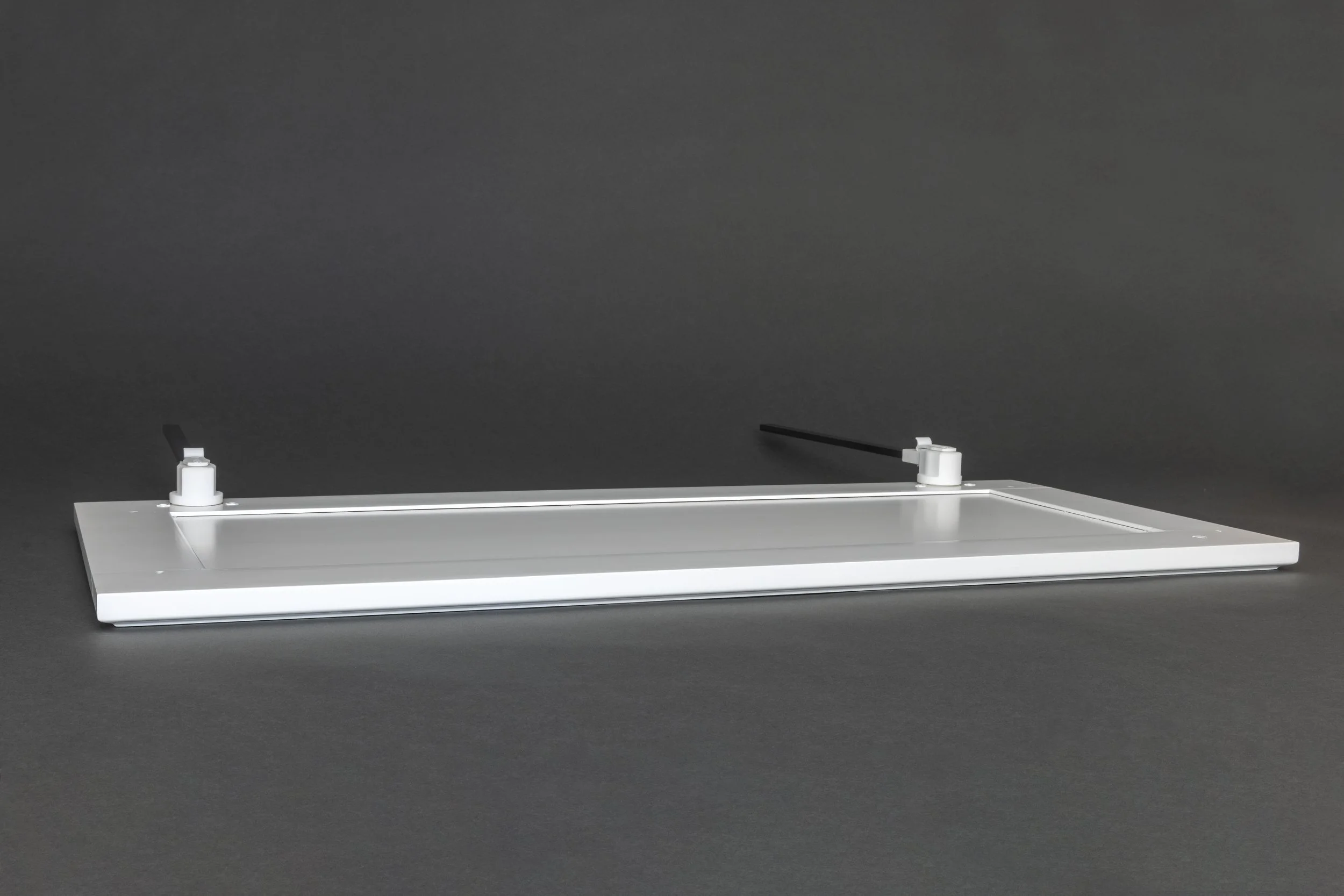

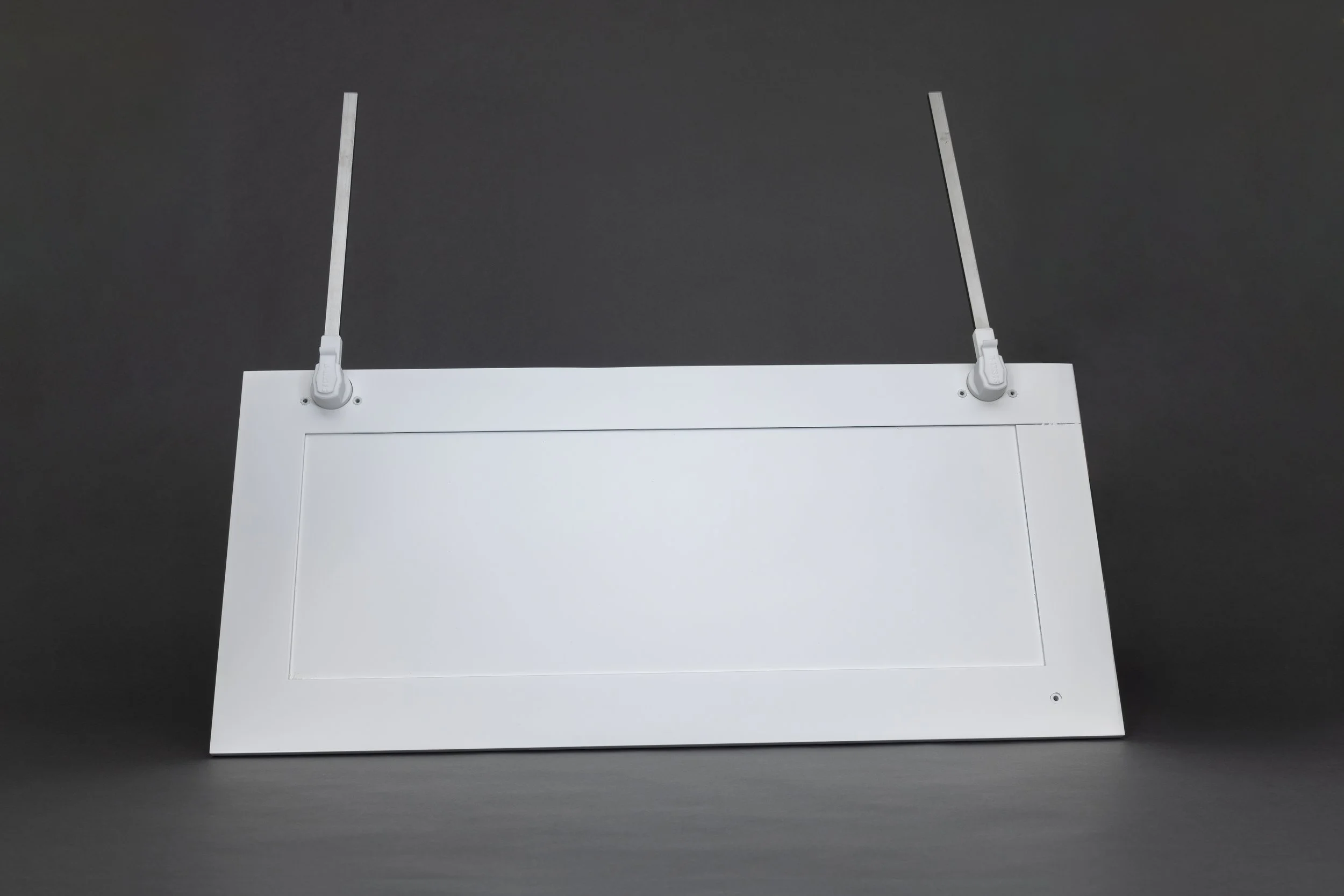

-20 Cabinet Door Hubs
-20 Door Hub Spray Caps with Locking Latch
-20 Handles with locks
(This set is enough to finish 10 Cabinet Doors and 5 Drawer Fronts.)
The 20/10 Standard Kit consists of 180 pieces that integrate to accommodate finishing of 30 total panels. 20 Cabinet doors and 10 Drawer fronts. The components easily attach to the panels and are easily removed to be stored away for use again repeatedly. This kit comes with a build plan for a wood spray rack and drying rack. It is a basic build plan to convey operational concept that can be modified by the end user to specific shop needs.
Standard Kit Includes:
20 Drawer Front Hubs
20 Drawer Hub Spray Caps with Locking Latch
20 Handles with Locks
(Enough to finish 10 Drawer Fronts)
40 Cabinet Door Hubs
40 Door Hub Spray Caps with Locking Latch
40 Handles with locks
(Enough to finish 20 Cabinet Doors and 10 Drawer Fronts.)
